Kia
›
2014
›
Sedona LX
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Engine Control System
›
Variable Charge Motion Actuator (VCMA)
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

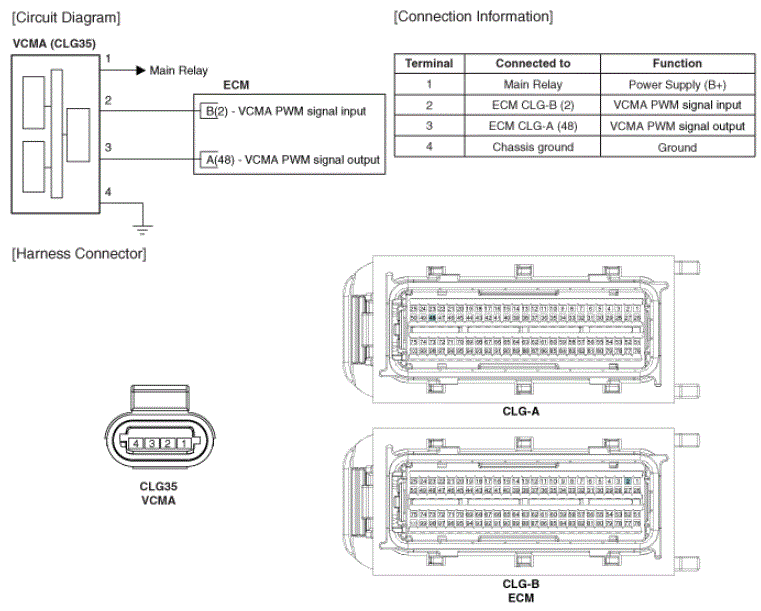

Fig 1: Variable Charge Motion Actuator - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
