Variable Intake Solenoid (VIS) Valve
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

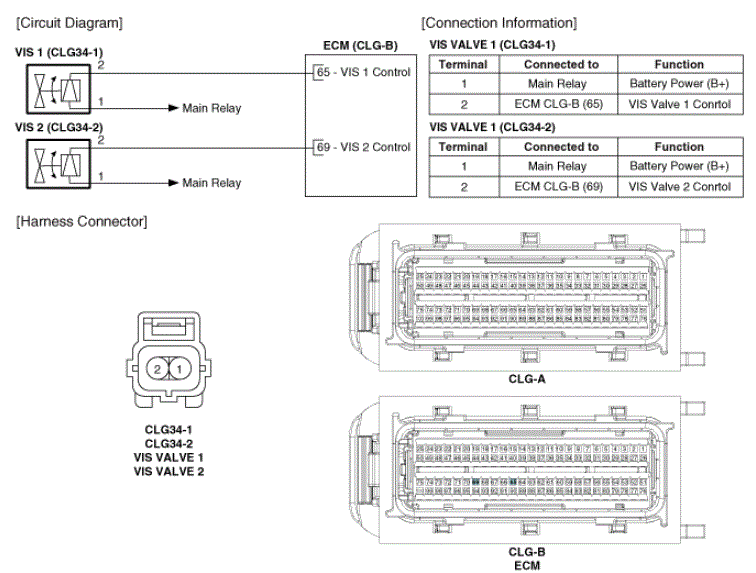

Fig 1: Variable Intake Solenoid Valve - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
