Engine Control System Diagnosis (1 Of 3)
›
DTC P0197: Engine Oil Temperature Sensor Low Input
›
General Information
›
Signal Waveform & Data
Signal Waveform & Data

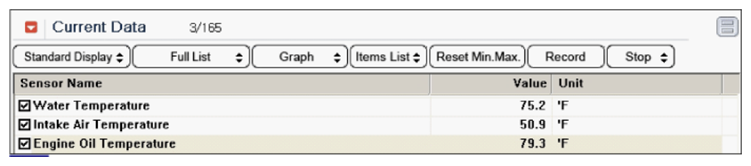

Fig 1: Scantool Display - Normal Data Of IATS & ECTS & EOTS At Ig On
Courtesy of KIA MOTORS AMERICA, INC.

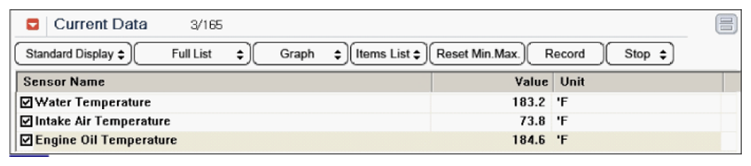

Fig 2: Scantool Display - Normal Data Of IATS & ECTS & EOTS After Warming Up
Courtesy of KIA MOTORS AMERICA, INC.

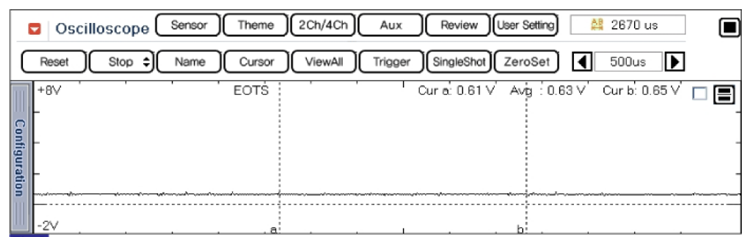

Fig 3: Screen Display - Normal Waveform Of EOTS
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
