4WD Control System Diagnosis
›
DTC U1121: Lost Communication With Electric Stability Program Module
›
Component Location
Component Location

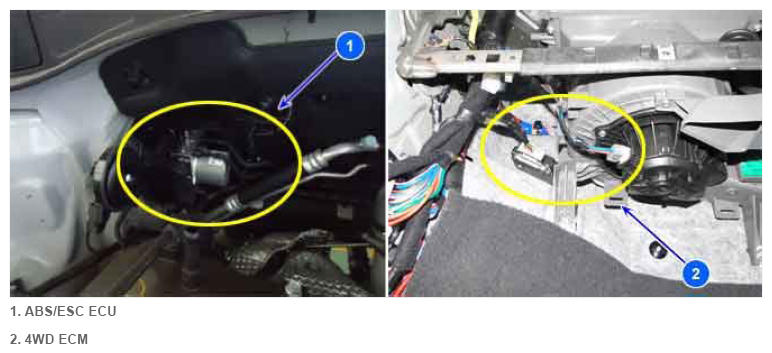

Fig 1: Identifying ABS/ESC ECU And 4WD ECM Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
