Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A).

    (Refer to "CRASH PAD LOWER PANEL REPLACEMENT ")

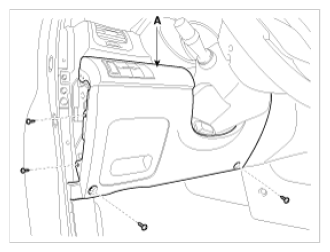

    Fig 1: Identifying Crash Pad Lower Panel
    G09766986Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove IPM (Intelligent intergrated Platform Module) connector (A), bolts and nut
    Fig 2: Identifying IPM Connector & Fasteners
    G09766987Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove IPM after removing rear connectors.
