Overhead Console Lamp Replacement

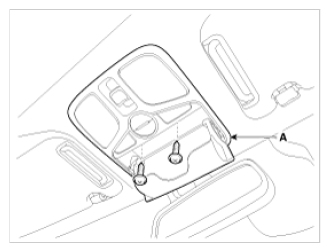

After loosening the mounting screws, then remove the overhead console lamp assembly (A).

Fig 1: Identifying Overhead Console Lamp Assembly
Courtesy of KIA MOTORS AMERICA, INC.

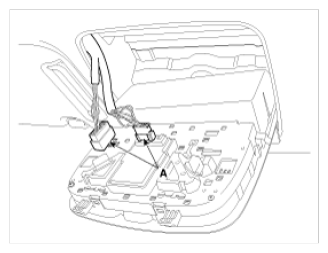

Disconnect the connectors (A).

Fig 2: Identifying Overhead Console Lamp Assembly Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
NOTE:
- Make sure the connector is plugged in properly.
