Power Window Main Switch

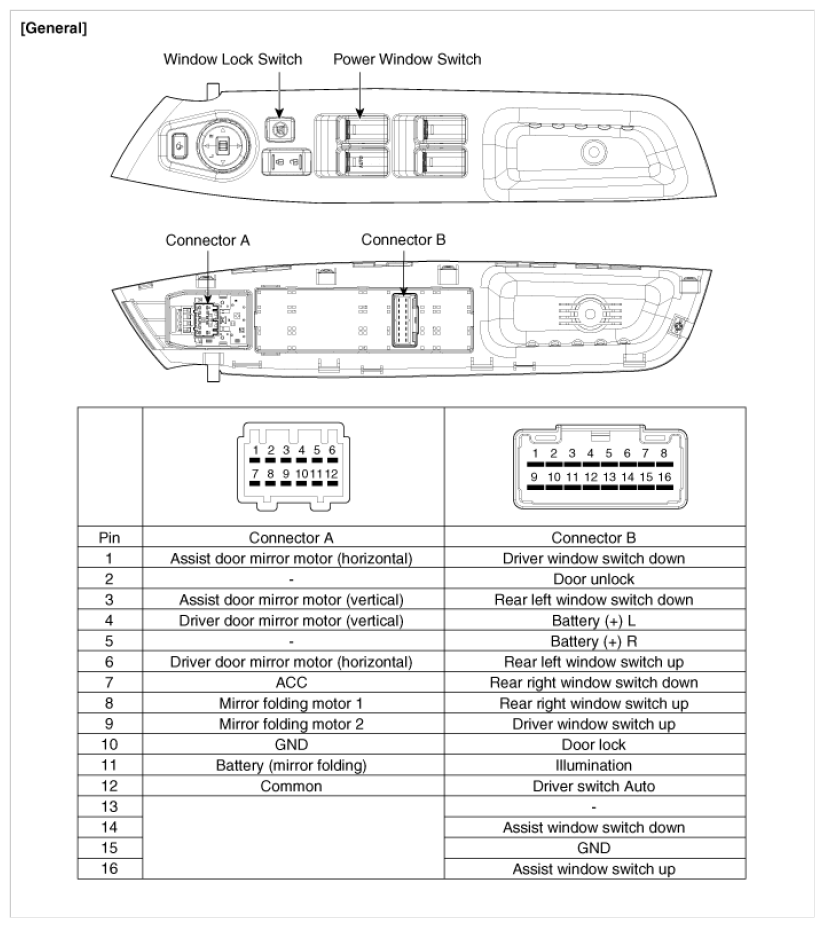

Fig 1: Identifying Window Lock Switch, Power Window Switch, Connector A And Connector B (General)
G09767142Courtesy of KIA MOTORS AMERICA, INC.

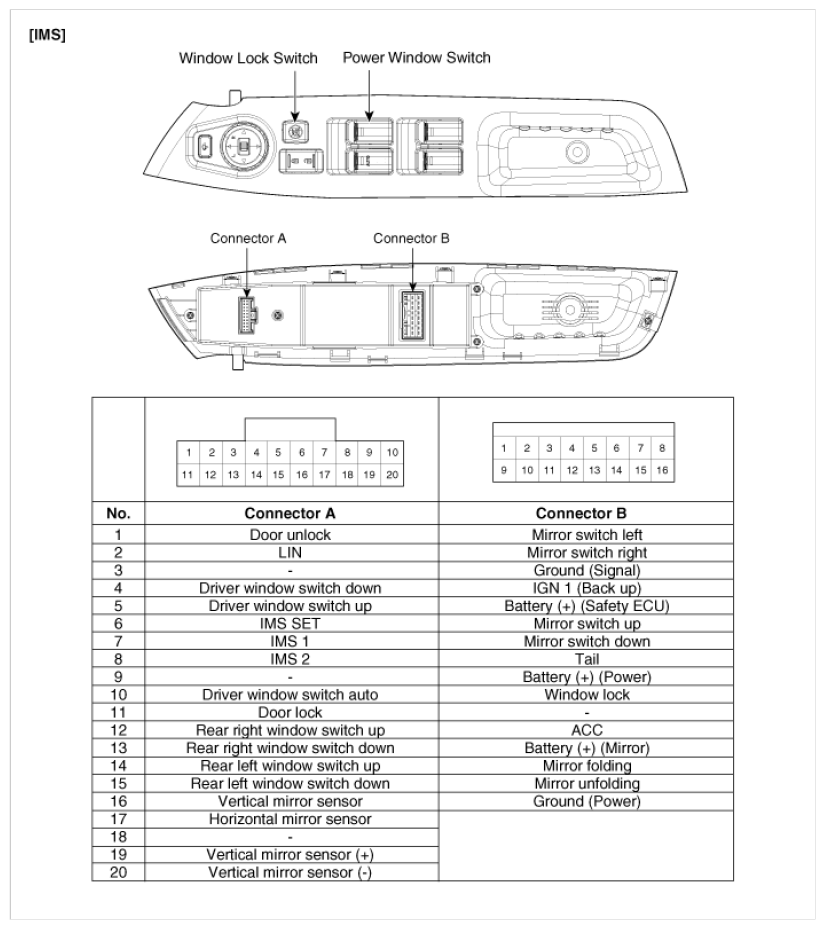

Fig 2: Identifying Window Lock Switch, Power Window Switch, Connector A And Connector B (IMS)
G09767143Courtesy of KIA MOTORS AMERICA, INC.
