Components and Components Location
›
Components
›
Rear Power Window Switch
Rear Power Window Switch

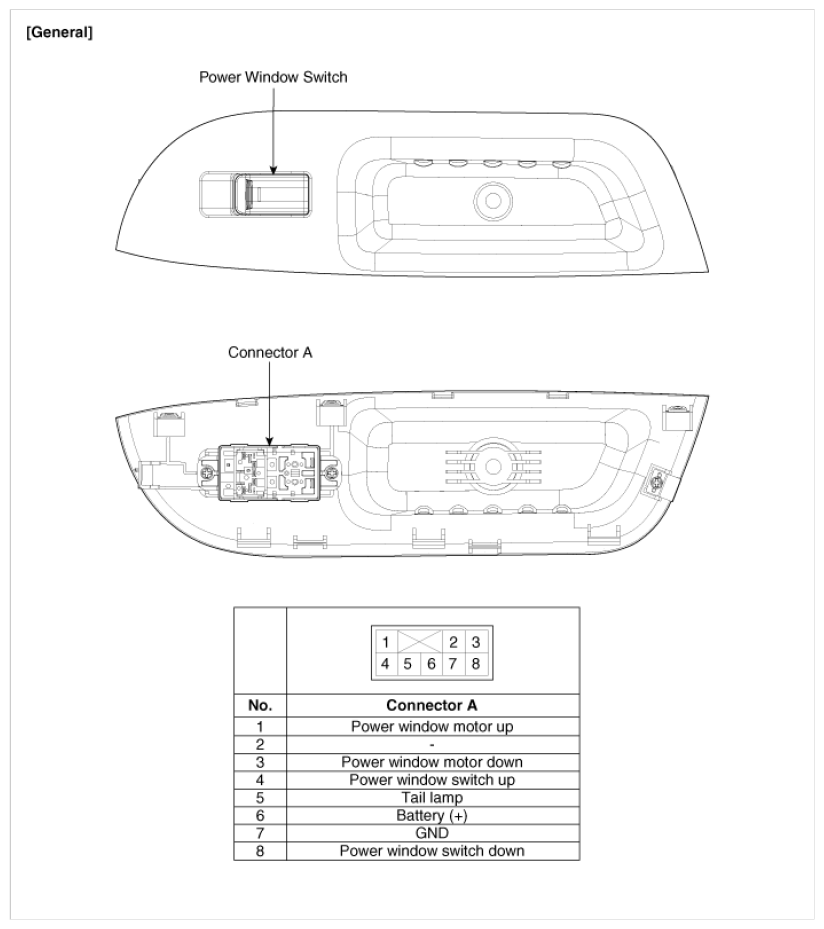

Fig 1: Identifying Power Window Switch And Connector A (General)
Courtesy of KIA MOTORS AMERICA, INC.

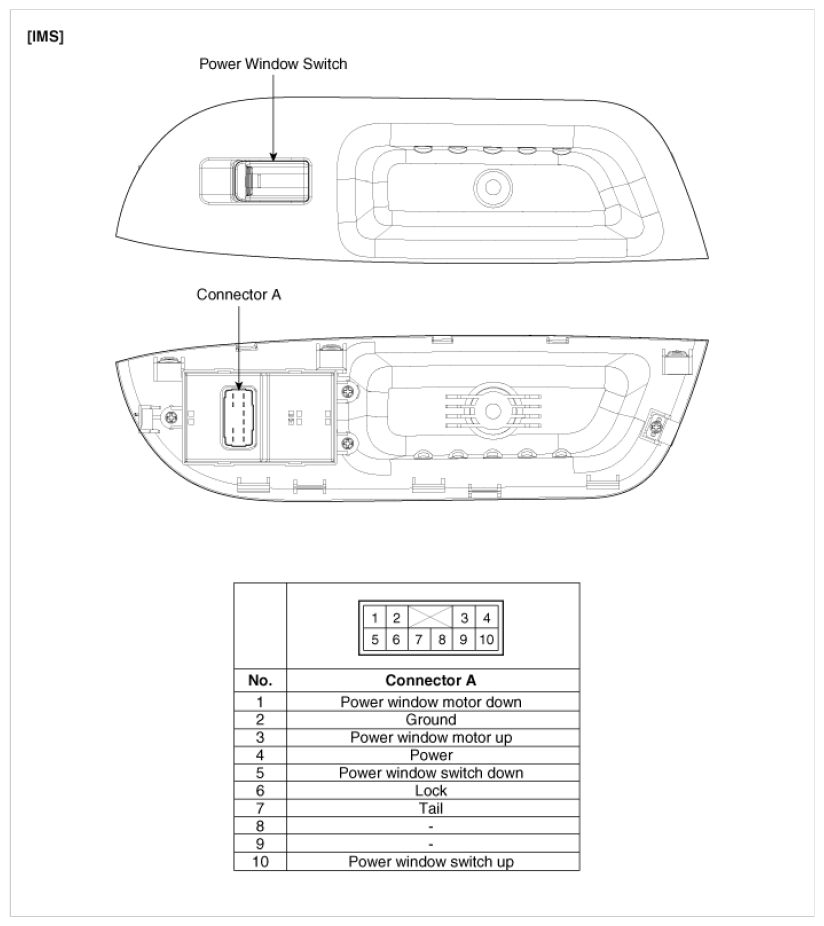

Fig 2: Identifying Power Window Switch And Connector A (IMS)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
