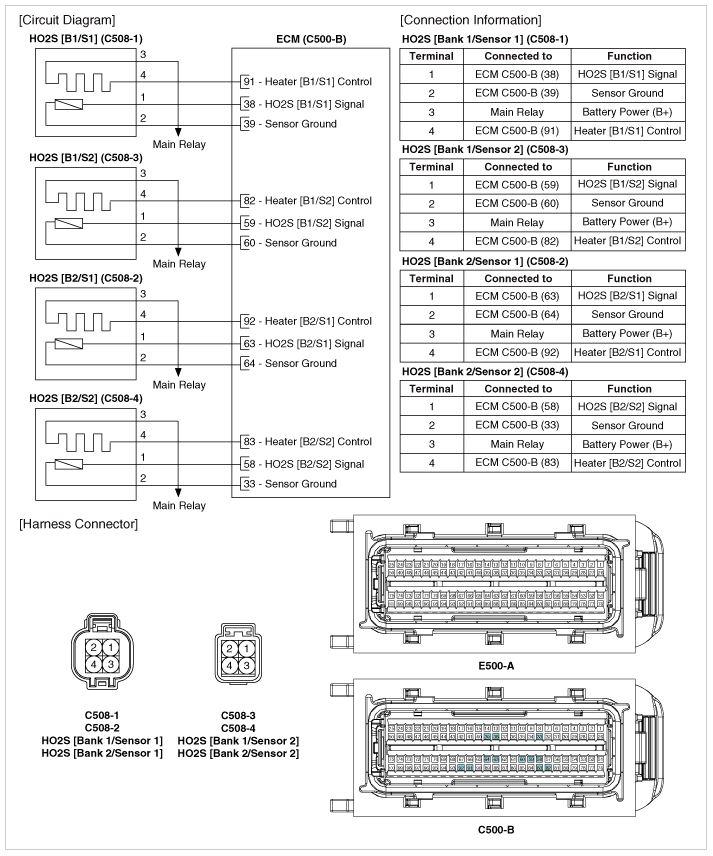

Home › Kia › 2014 › Sorento EX, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.3L › Heated Oxygen Sensor (HO2S) › Schematic Diagrams › Circuit Diagram
