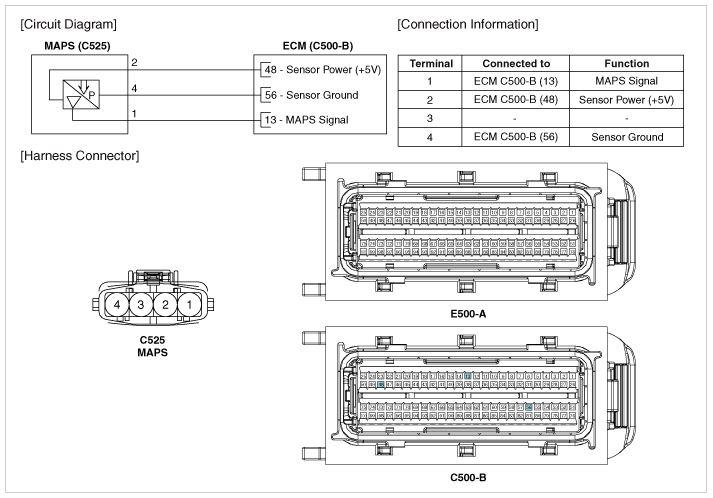

Home › Kia › 2014 › Sorento EX, FWD › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 3.3L › Manifold Absolute Pressure Sensor (MAPS) › Schematic Diagrams › Circuit Diagram
