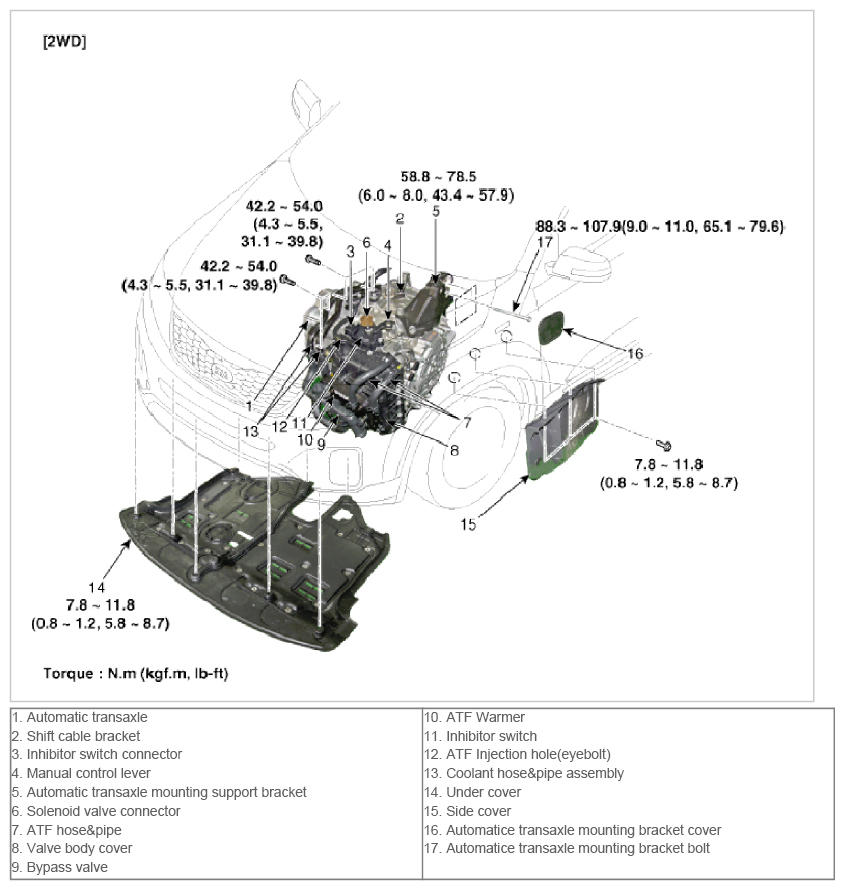

Components Location
WARNING: This page is about a different variant/trim than selected.
- Automatic transaxle
- Shift cable bracket
- Inhibitor switch connector
- Manual control lever
- Automatic transaxle mounting support bracket
- Solenoid valve connector
- ATF hose & pipe
- Valve body cover
- Bypass valve
- ATF Warmer
- Inhibitor witch
- ATR Injection hole (eyebolt)
- Coolant hose & pipe assembly
- Under cover
- Side cover
- Automatic transaxle mounting bracket cover
- Automatic transaxle mounting bracket bolt
- Transfer assembly
- Propeller shaft
- Coupling Assembly
