Section 23 (Automatic Transaxle Control System - A6MF2)
›
Components and Components Location
›
Component Location
Component Location
WARNING:
This page is about a different variant/trim than selected.
Fig 1: Automatic Transaxle System Components Location With Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

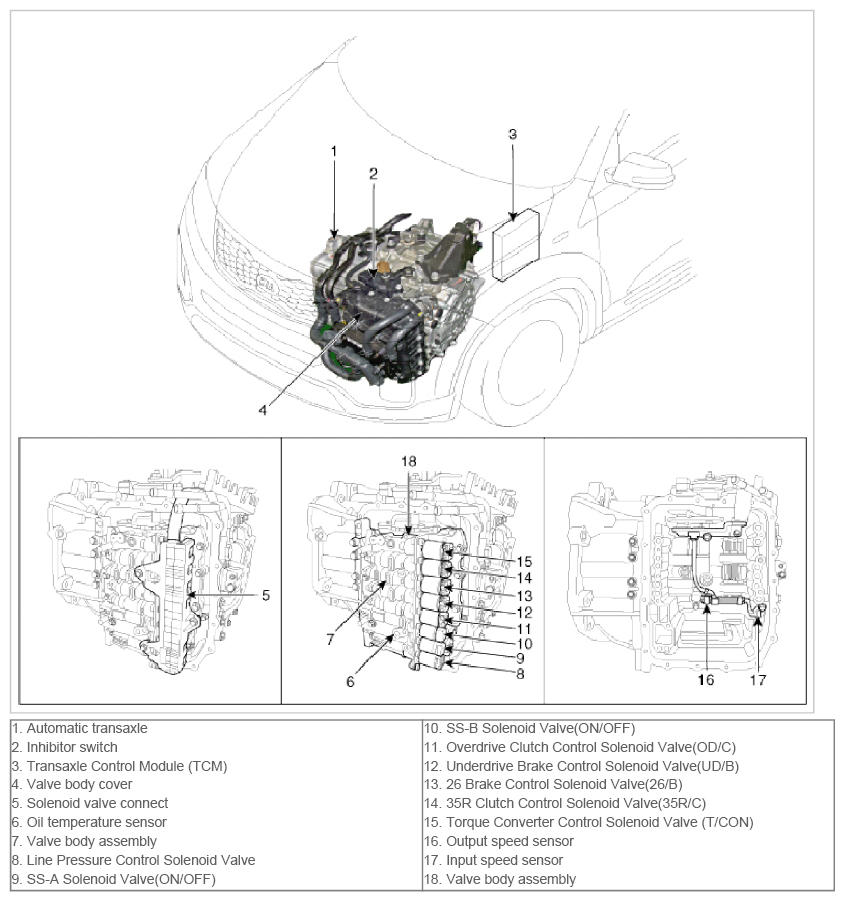

Fig 2: Automatic Transaxle System Components Location With Torque Specifications (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
