Front Wheel Transfer Assembly
›
Components and Components Location
›
Components Location
Components Location

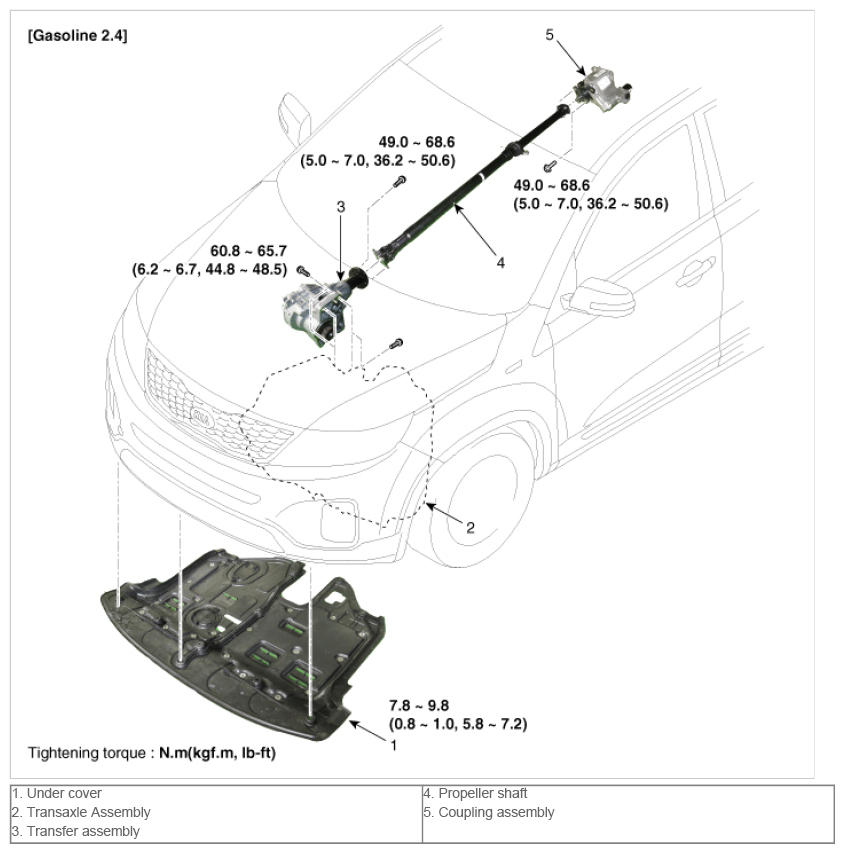

Fig 1: Front Wheel Transfer Assembly Components Location (Gasoline 2.4)
Courtesy of KIA MOTORS AMERICA, INC.

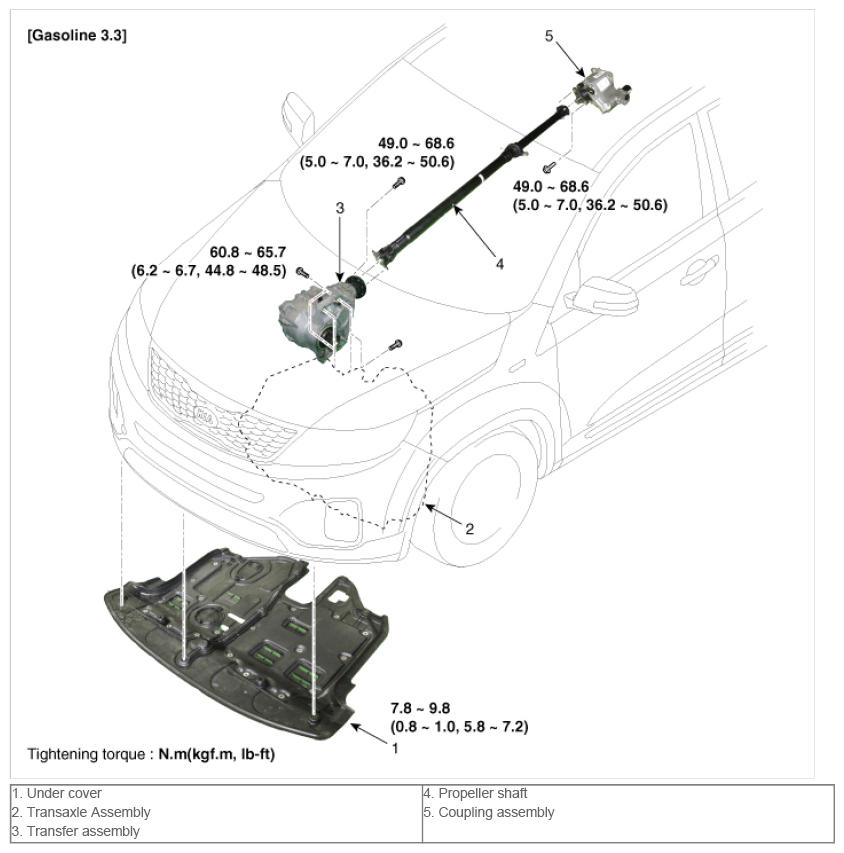

Fig 2: Front Wheel Transfer Assembly Components Location (Gasoline 3.3)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
