Smart Key Unit

Disconnect the negative (-) battery terminal.
Remove the glove box housing (A).
(Refer to "CRASH PAD ")
Remove the smart key unit (A) after removing the bolts and connectors.

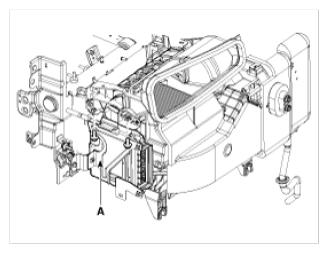

Fig 1: Identifying Smart Key Unit
Courtesy of KIA MOTORS AMERICA, INC.
