Engine Control System - 2.0L
›
Camshaft Position Sensor (CMPS)
›
Troubleshooting
›
Wave Form
Wave Form

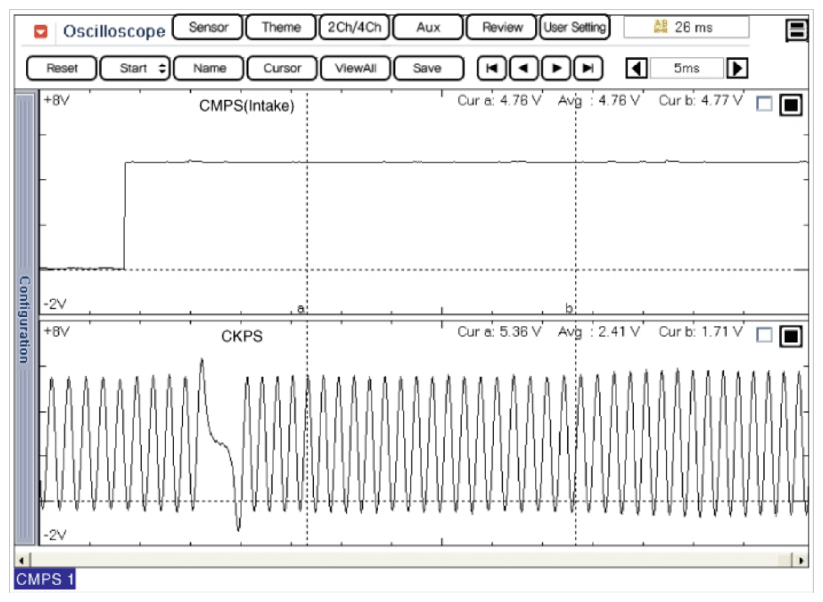

Fig 1: Display Camshaft Position Sensor Signal Waveform (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

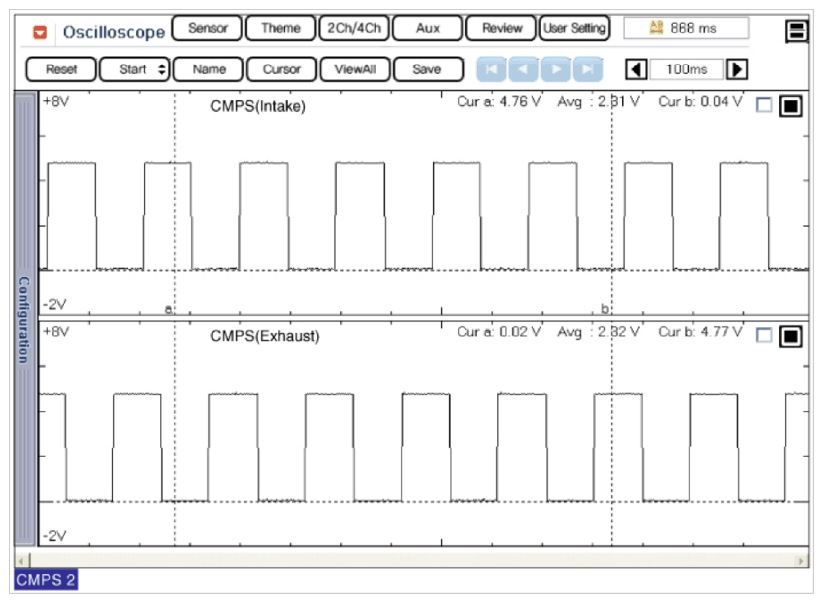

Fig 2: Display Camshaft Position Sensor Signal Waveform (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
