Engine Control System - 2.0L
›
Engine Control Module (ECM)
›
Schematic Diagrams
›
Circuit Diagram
›
(M/T)
Circuit Diagram: (M/T)

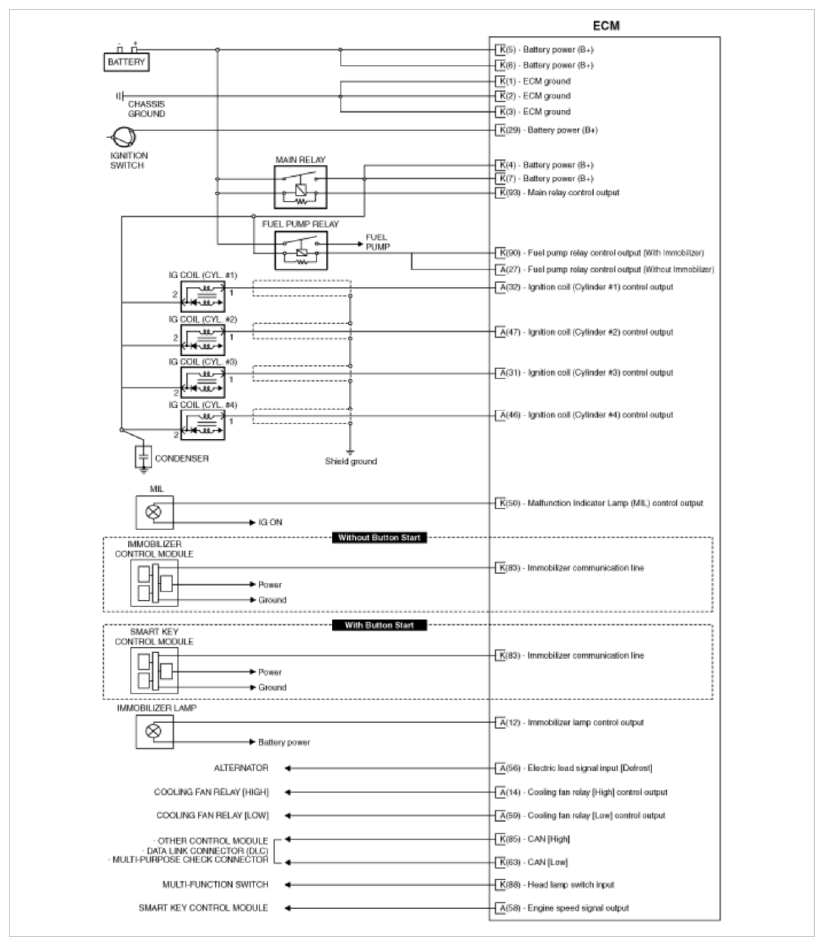

Fig 1: ECM Circuit Diagram (M/T; 1 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

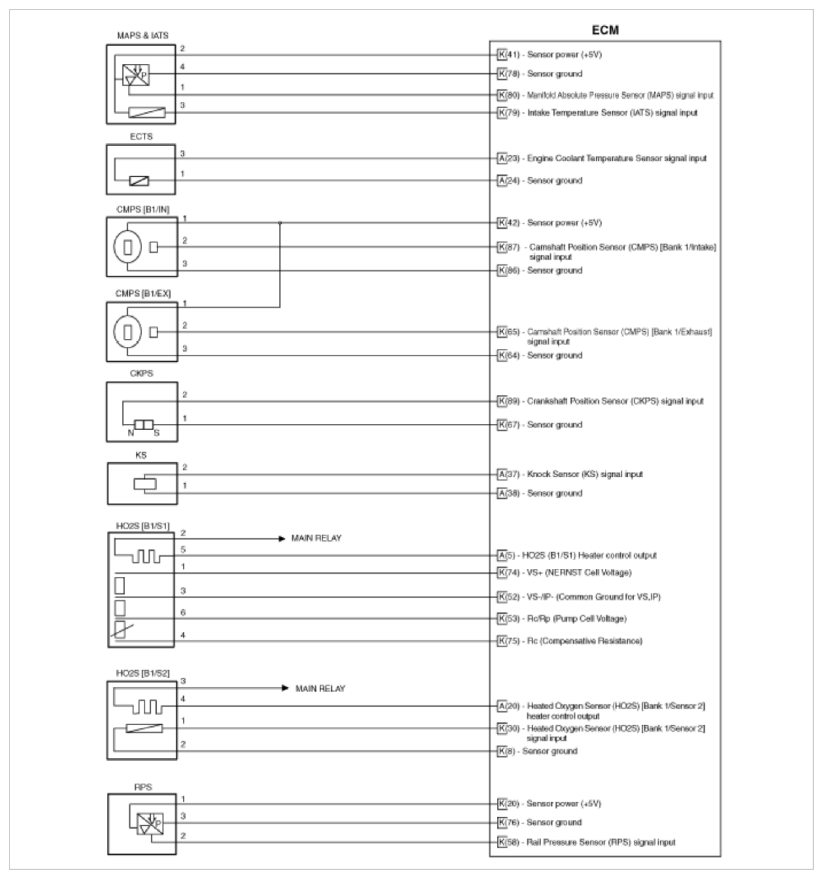

Fig 2: ECM Circuit Diagram (M/T; 2 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

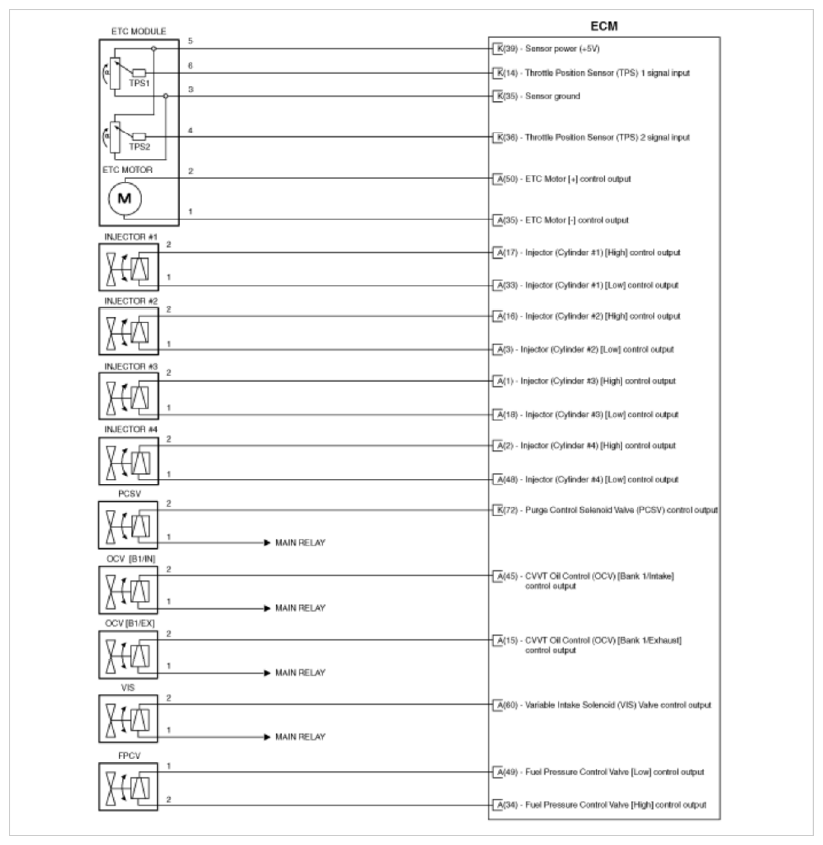

Fig 3: ECM Circuit Diagram (M/T; 3 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.

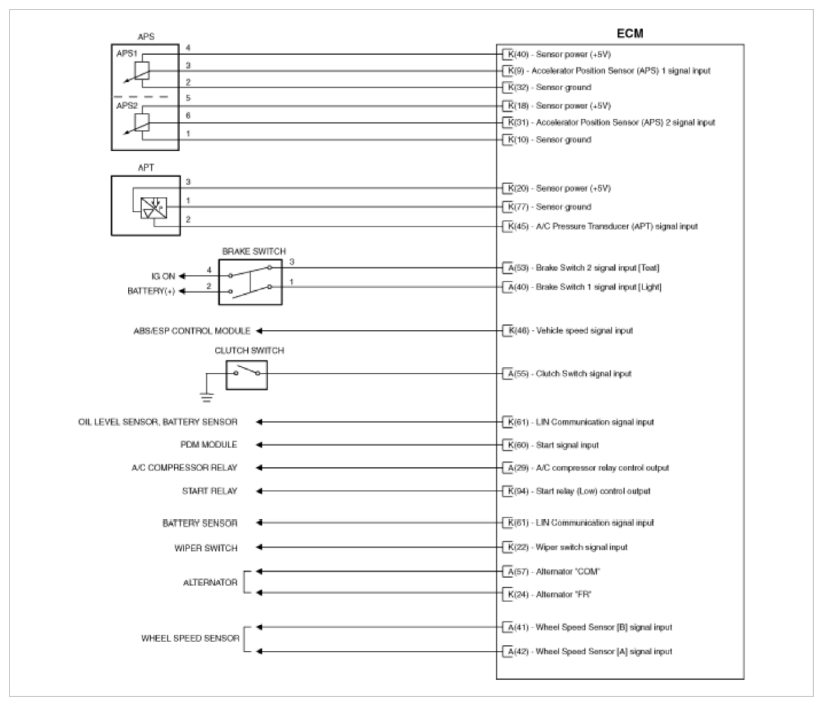

Fig 4: ECM Circuit Diagram (M/T; 4 Of 4)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
