[Bank 1/Sensor 1]

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Disconnect the connector (A) and lift the vehicle.

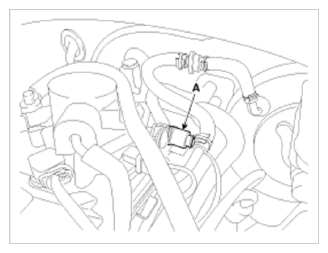

    Fig 1: Identifying Heated Oxygen Sensor Connector
    G09779277Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the sensor (A).

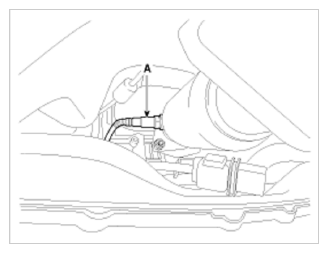

    Fig 2: Identifying Heated Oxygen Sensor
    G09779278Courtesy of KIA MOTORS AMERICA, INC.
