Repair procedures: Inspection
- Turn ignition switch OFF.

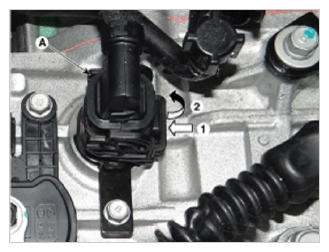

- Disconnect the solenoid valve connector (A).
Courtesy of KIA MOTORS AMERICA, INC.
- Measure resistance between solenoid valve signal terminal and ground terminal.
- Check that the resistance is within the specification.
