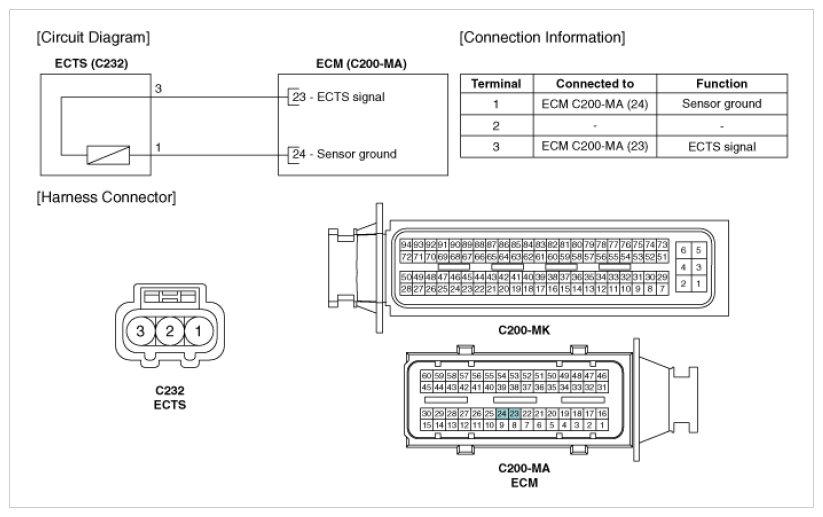

Home › Kia › 2014 › Soul + › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 2.0L › Engine Coolant Temperature Sensor › Schematic Diagrams › Circuit Diagram › (M/T)
