Idle Stop & Go (ISG) System - 2.0L
›
Components and Components Location
›
Components Location
Components Location

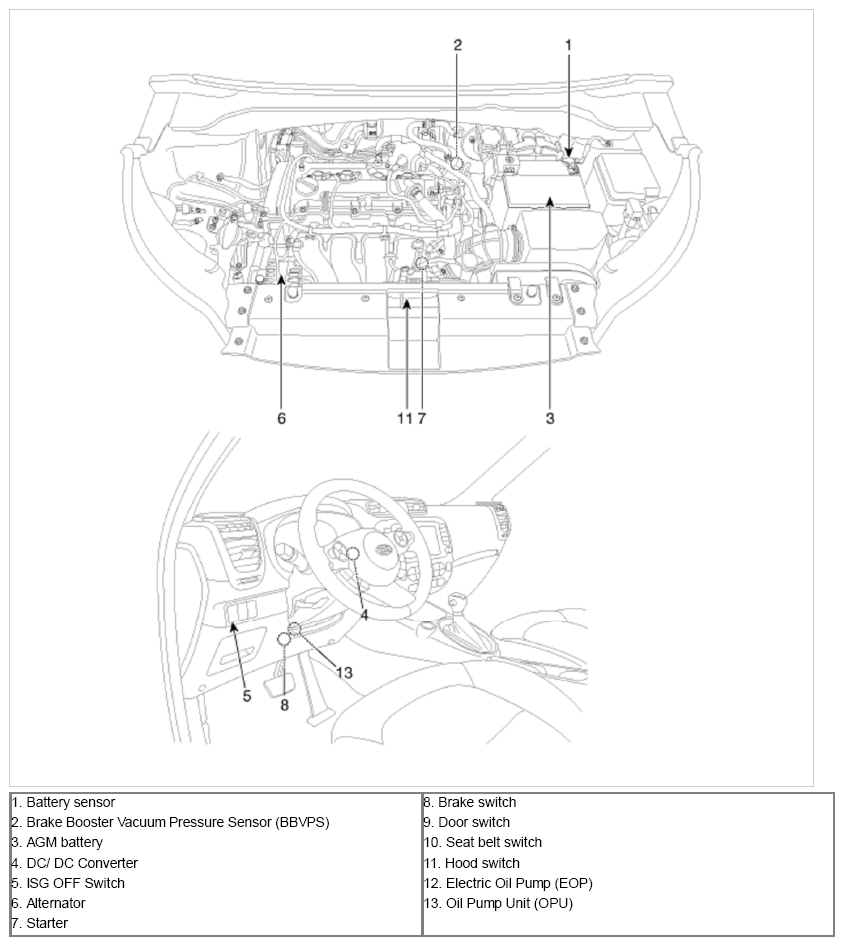

Fig 1: ISG System Components Location
Courtesy of KIA MOTORS AMERICA, INC.

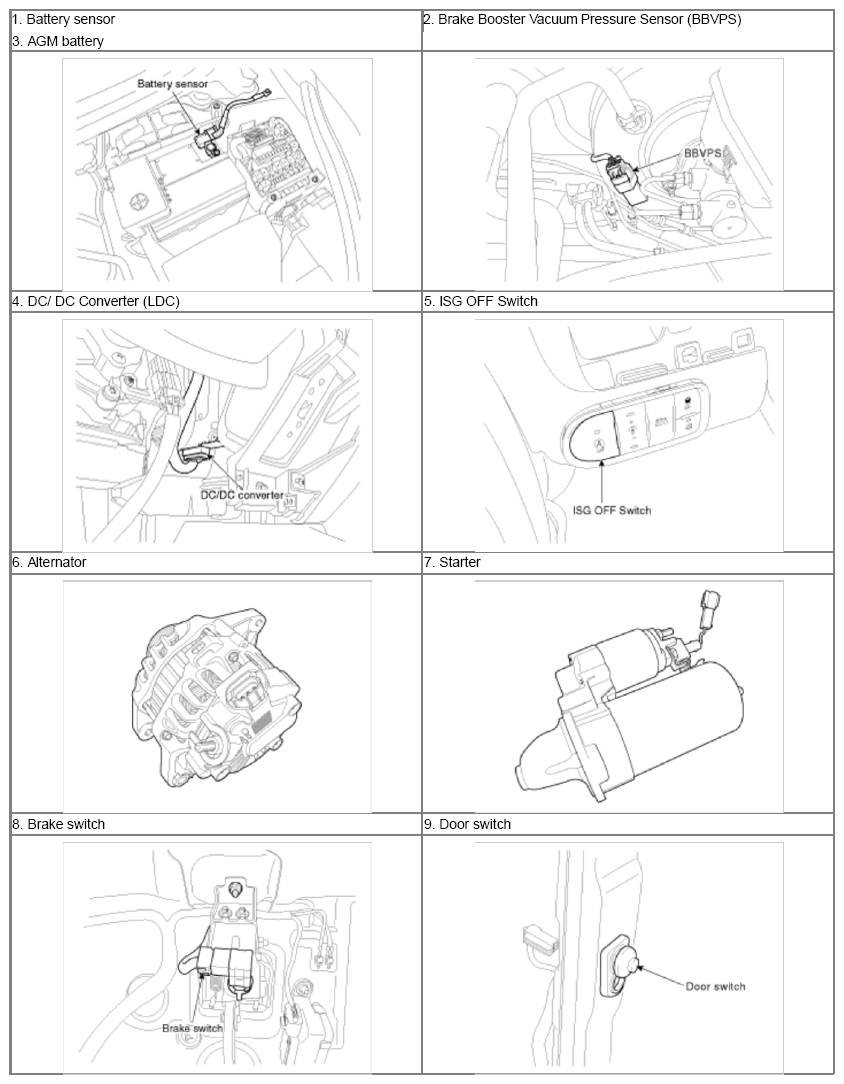

Fig 2: Identifying ISG System Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

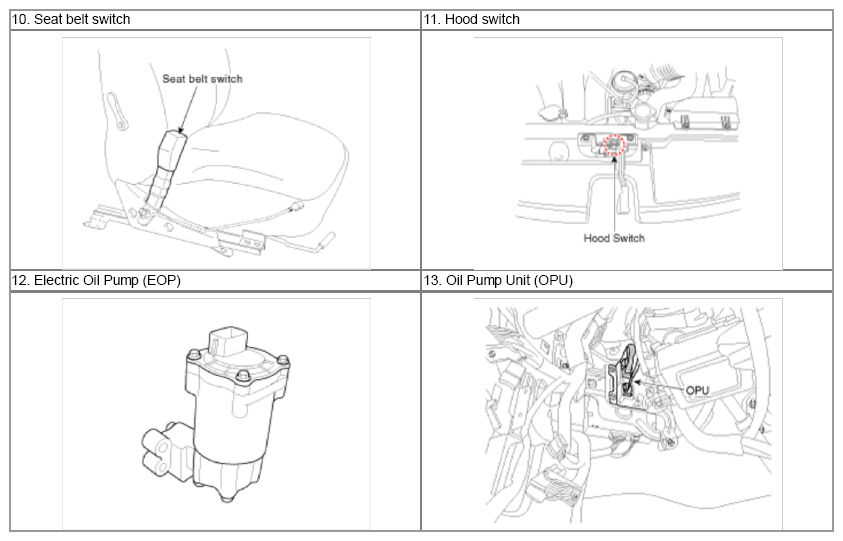

Fig 3: Identifying ISG System Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
