Kia
›
2014
›
Soul Base, Automatic Trans
›
Repair and Diagnosis
›
Accessories & Equipment
›
Entertainment Systems
›
Audio System
›
Audio Remote Control
›
Schematic Diagrams
›
Circuit Diagram
Circuit Diagram

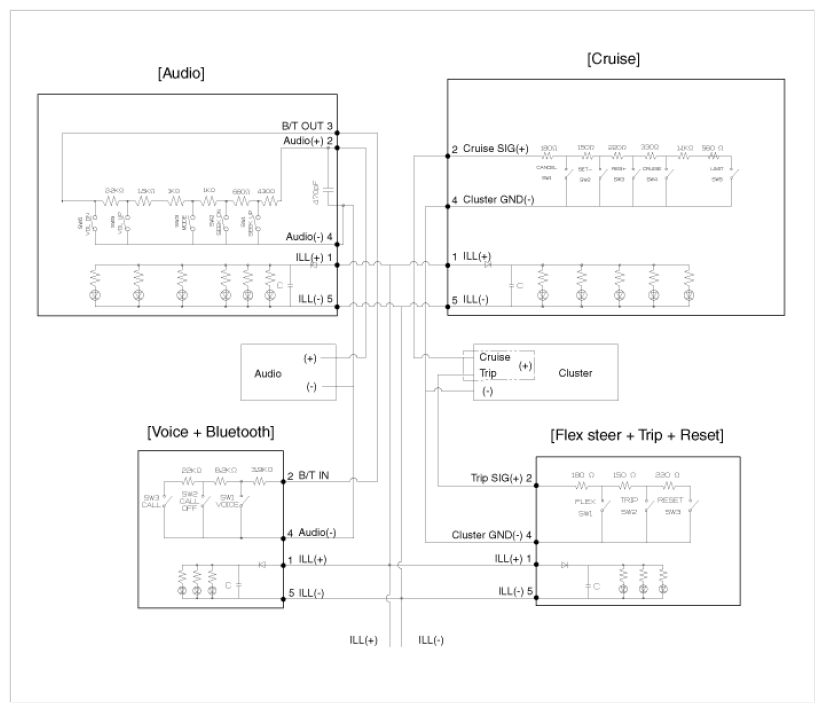

Fig 1: Audio - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

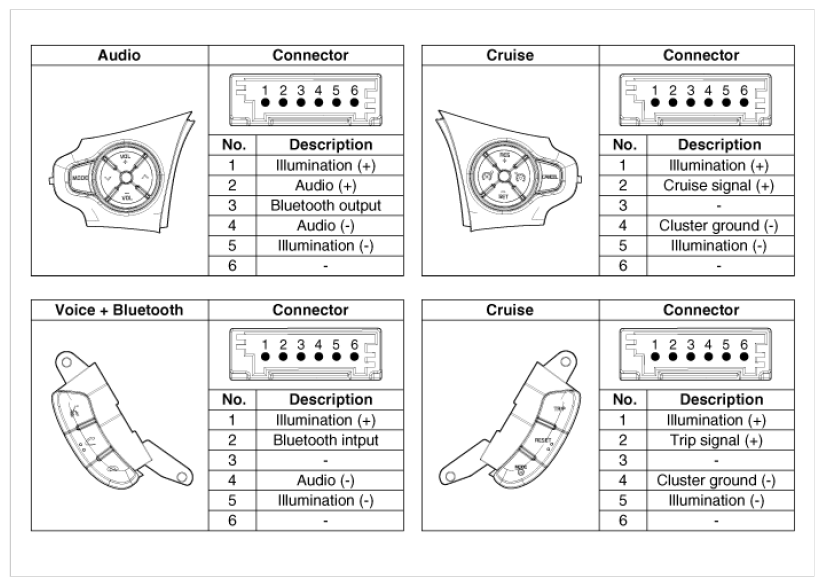

Fig 2: Identifying Audio Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
