Audio/Video/Navigation (AVN) System
›
Schematic Diagrams
›
System Block Diagram
System Block Diagram

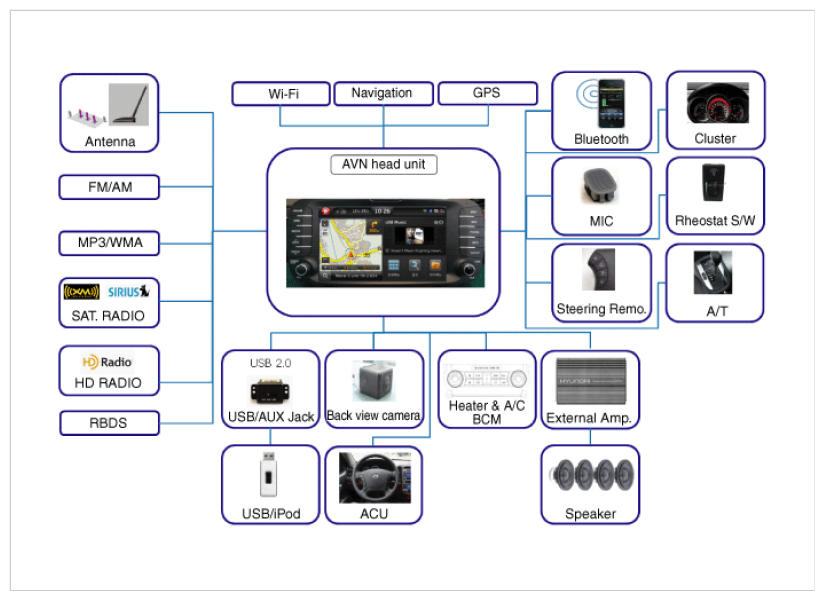

Fig 1: AVN Head Unit System Block Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
