Rear Wheel Speed Sensor
›
Components and Components Location
›
Components
Components and Components Location: Components

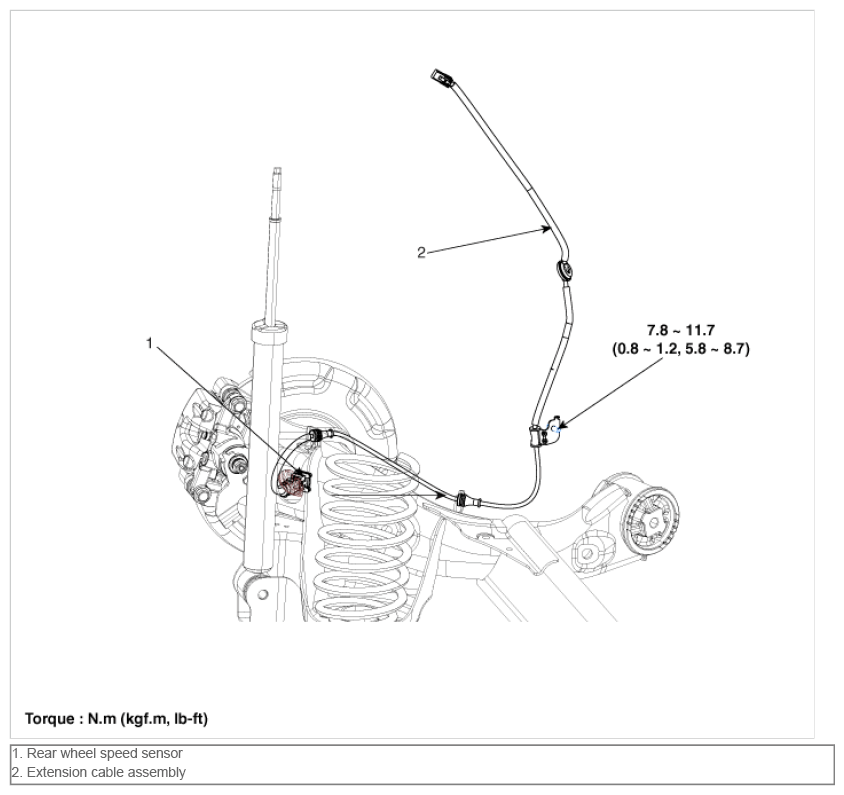

Fig 1: Rear Wheel Speed Sensor And Extension Cable Assembly With Torque Specification
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
