Components and Components Location: Components

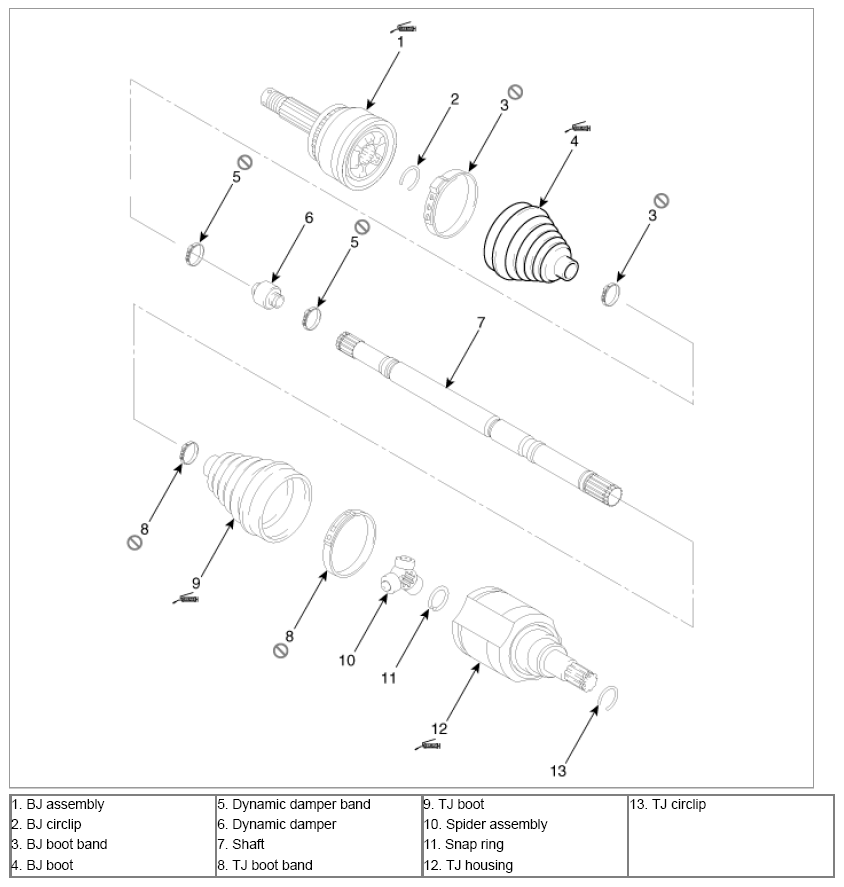

Fig 1: Exploded View Of Driveshaft Assembly
G09777827Courtesy of KIA MOTORS AMERICA, INC.
