Home › Kia › 2014 › Soul Base, Automatic Trans › Repair and Diagnosis › Electrical › Charging Systems › Charging System - 1.6L › Battery Sensor › Repair procedures › Removal

Repair procedures: Removal

  1. Disconnect the battery negative (-) cable.
  2. Disconnect the battery sensor connector (A).
  3. Remove the battery negative (-) cable after removing the bolt (B).

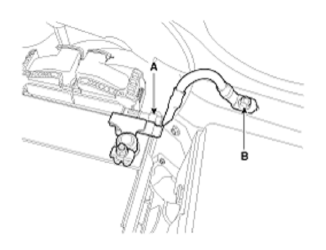

    Fig 1: Battery Sensor Connector And Mounting Bolt
    G09772866Courtesy of KIA MOTORS AMERICA, INC.
