Terminal and Connector Inspection

Many malfunctions in the electrical system are caused by poor connection. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Has a problem been found?

Fig 1: DLC CAN Communication Diagram
Courtesy of KIA MOTORS AMERICA, INC.

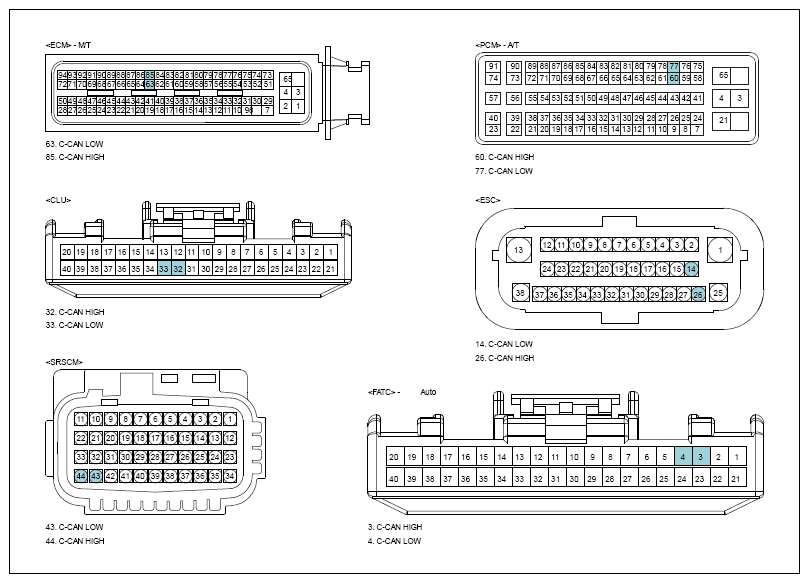

Fig 2: SRSCM Connector End View
Courtesy of KIA MOTORS AMERICA, INC.

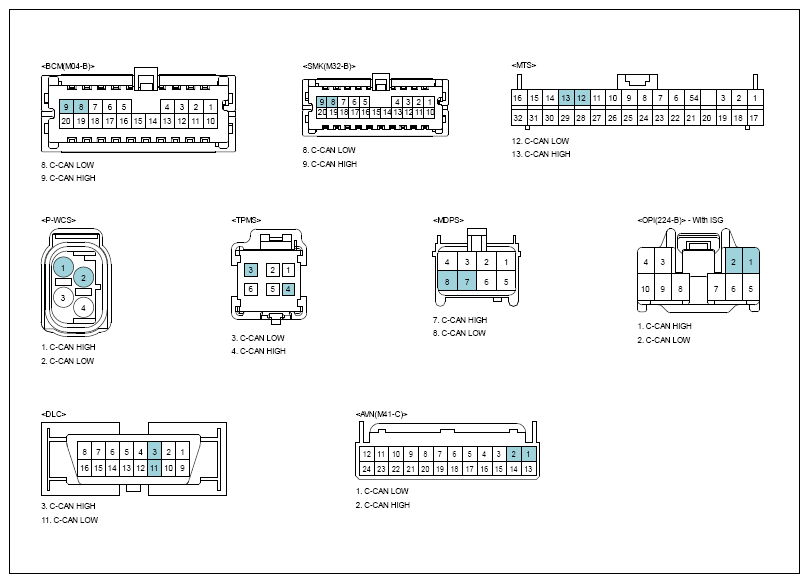

Fig 3: DLC Connector End View
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
