Accelerator Position Sensor (APS): Specification

Accelerator Position	Output Voltage (V) [Vref = 5V]
	APS1	APS2
C.T	0.7 ~ 0.8	0.28 ~ 0.48
W.O.T	3.85 ~ 4.35	1.8 ~ 2.3

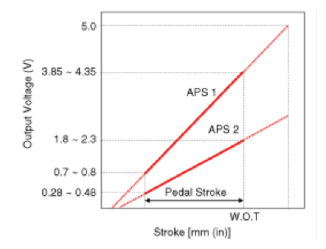

Fig 1: APS Output Voltage Versus Stroke Graph

Courtesy of KIA MOTORS AMERICA, INC.
