Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation hose (B) from the canister close valve.
  5. Remove the canister close valve (C) after removing the bolts.

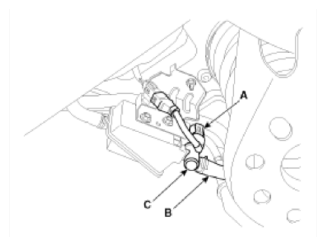

    Fig 1: Identifying Canister Close Valve Connector, Canister Close Valve, Ventilation Hose
    G09773049Courtesy of KIA MOTORS AMERICA, INC.
