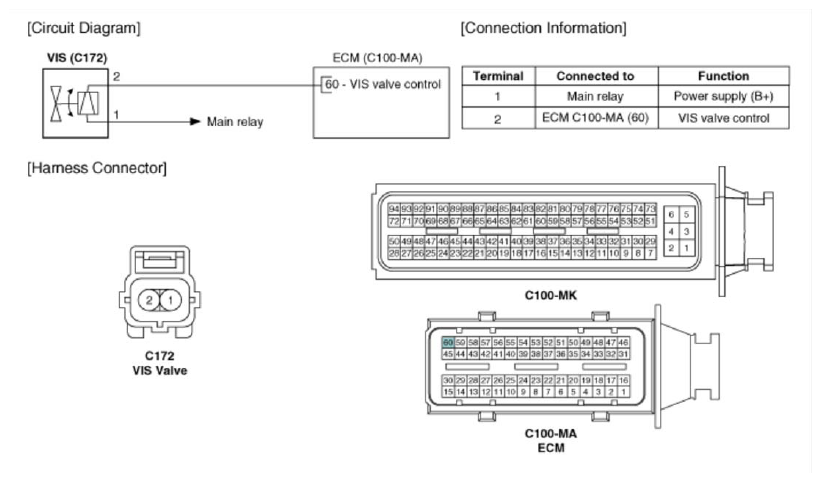

Home › Kia › 2014 › Soul Base, Automatic Trans › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Variable Intake Solenoid (VIS) Valve › Schematic Diagrams › Circuit Diagram › (M/T)
