Section 17 (Starting System - 2.0L): Troubleshooting

WARNING: This page is about a different variant/trim than selected.

NOTE:

The battery must be in good condition and fully charged for this troubleshooting.

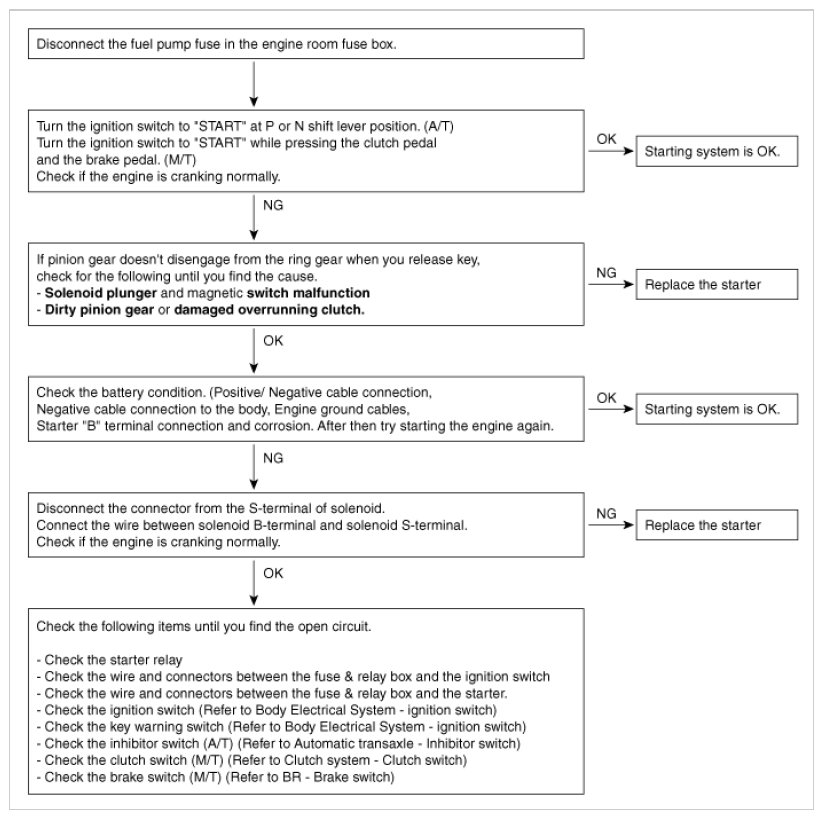

Fig 1: Troubleshooting Chart

Courtesy of KIA MOTORS AMERICA, INC.
