UNEVEN WINDSHIELD DEFROSTER PERFORMANCE
UNEVEN WINDSHIELD DEFROSTER PERFORMANCE
TECHNICAL SERVICE BULLETIN
Reference Number(s): CLI030, Date of Issue:
February, 2016
| KIA: |
2014~2015 Soul (PS) |
| GROUP: |
Climate |
SERVICE INFORMATION
This bulletin provides the procedure to install vent clips on some 2014~2015MY Soul (PS) vehicles, produced from July 21, 2013 through April 5, 2015, which may exhibit uneven windshield defroster performance. Follow the procedure outlined in this bulletin to install two (2) clips onto the center dash vents to resolve the concern.
| Part Name |
Figure |
| Vent Clip (RH) |
|
| Vent Clip (LH) |
|
SERVICE PROCEDURE

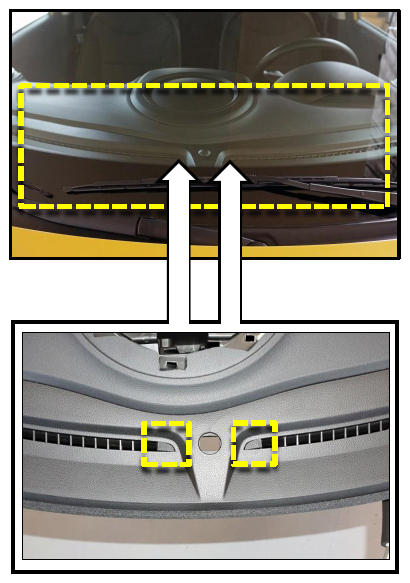

- Locate the mounting locations for the vent clips on the center dash vents, as shown.
CAUTION:
Be sure to wear disposable gloves throughout this procedure to avoid soiling interior trim panels.
- Install the left and right vent clips onto the two innermost openings of the dash vents, as shown.
NOTE:
dash shown removed to improve illustration clarity only.
NOTE:
Make sure to avoid dropping the clips into the vents.

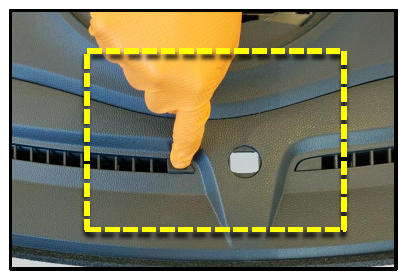

- Apply downward pressure on each vent clip to secure in place, as shown.
PRODUCTION DATE
| Model |
Production Date Range |
| Soul (PS) |
From July 21, 2013 through April 5, 2015 |
PART INFORMATION
| Part Name |
Part Number |
Qty. |
Figure |
| Vent Clip (RH) |
84813 B2900FFF |
1 |
|
| Vent Clip (LH) |
84813 B2000FFF |
1 |
|
WARRANTY INFORMATION
| Claim Type |
Causal P/N |
Qty. |
N Code |
C Code |
Repair Description |
Labor Op Code |
Op Time |
Replacement P/N |
Qty. |
| W |
84810 B2000EQ |
1 |
I14 |
ZZ1 |
(CLI 030) Defroster Vent Clip Install (RH/LH) |
84813F00 |
0.2 M/H |
84813 B2900FF and 84813 B2000FFF |
1 |
