Special Service Tools

Tool Name/Number Illustration Description
Engine support fixture (bar)
09200-3N000
G09777739Courtesy of KIA MOTORS AMERICA, INC.
 Used for holding engine assembly when removing/installing transaxle
Used with the adapter (09200-4X000) and supporter (09200-2S000)
Engine support fixture (supporter)
  1. 09200-2S000
  2. 09200-2S100
  3. 09200-2S200
G09777740Courtesy of KIA MOTORS AMERICA, INC.
 Used for holding engine assembly when removing/installing transaxle
Used with the bar (09200-3N000) and adapter (09200-4X000)
Engine support fixture (adapter)
09200-4X000
G09777741Courtesy of KIA MOTORS AMERICA, INC.
 Used for holding engine assembly when removing/installing transaxle
Used with the bar (09200-3N000) and supporter (09200-2S000)
Oil seal installer
  1. 09452-26100 (Installer)
  2. 09231-H1100 (Handle)
G09777742Courtesy of KIA MOTORS AMERICA, INC.
 -
Inhibitor switch guide pin
09480-A3800
G09777743Courtesy of KIA MOTORS AMERICA, INC.
 -

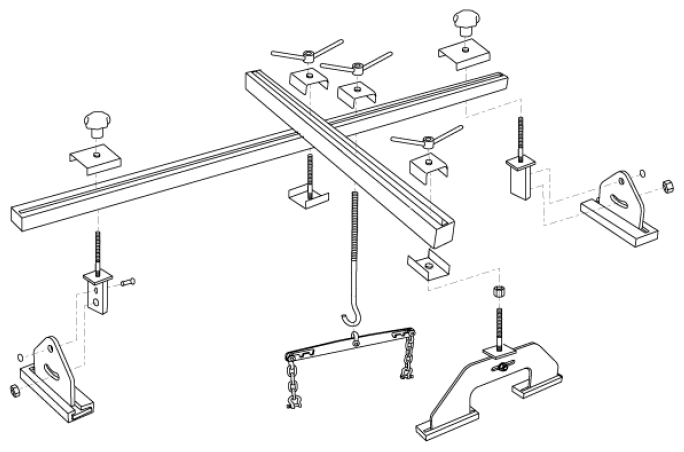

* Engine support fixture special tool assembly drawing

Fig 1: Engine Support Fixture Special Tool Assembly Diagram
G09777744Courtesy of KIA MOTORS AMERICA, INC.
