Monitor DTC Status

Connect GDS to Data Link Connector (DLC).
Ignition "ON".
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
Is DTC status displayed as Present?

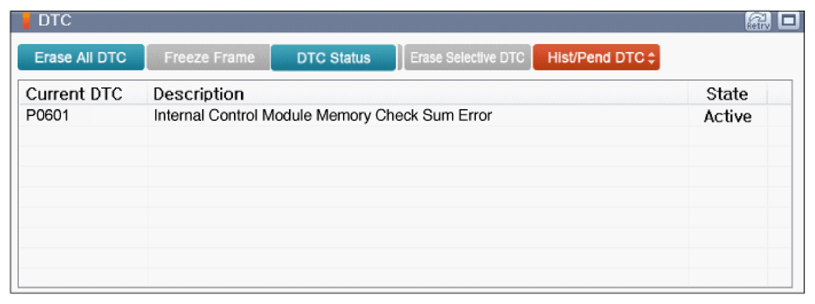

Fig 1: Display - Current DTC Data
Courtesy of KIA MOTORS AMERICA, INC.

YES
- Go to "MONITOR GDS DATA " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
