Components and Components Location: Components

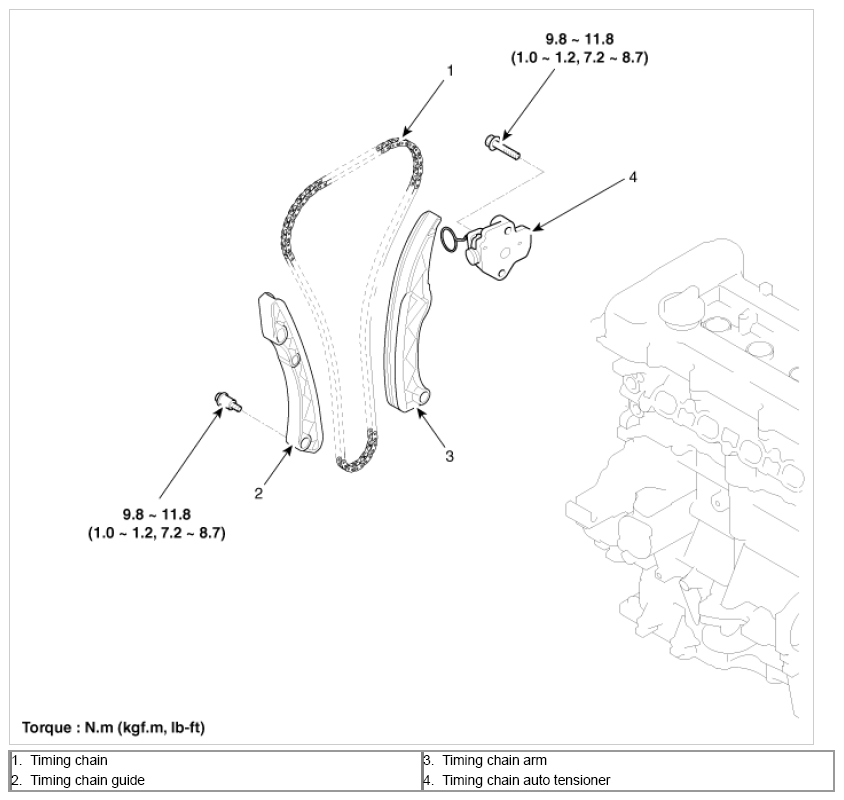

Fig 1: Timing Chain Components With Torque Specifications
G09772822Courtesy of KIA MOTORS AMERICA, INC.
