Monitor DTC Status

Connect GDS to Data Link Connector (DLC).
Ignition "ON"
Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
Is DTC status displayed as Present?

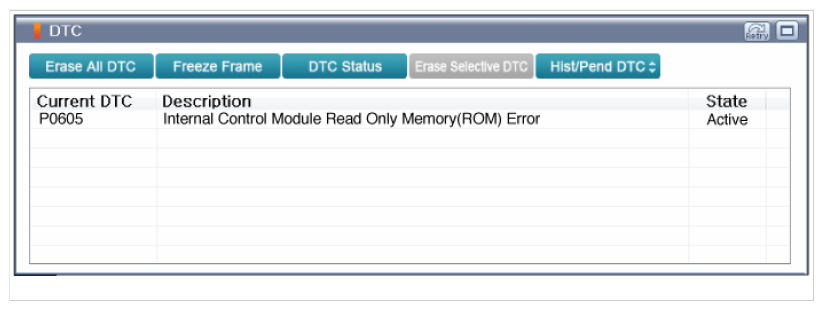

Fig 1: Display - Diagnostic Trouble Code Screen
Courtesy of KIA MOTORS AMERICA, INC.
Is DTC status displayed as Present?
YES
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
NO
- Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
