Smart Key Unit

Disconnect the negative (-) battery terminal.
Remove the glove box housing.
(Refer to CRASH PAD )
Disconnect the connector (A) after loosening the mounting screws and bolt. And then remove the SMK unit (B).

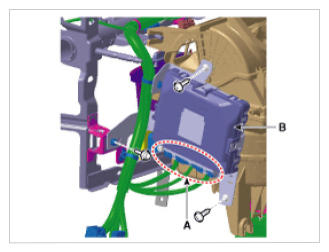

Fig 1: Identifying Connector And SMK Unit
Courtesy of KIA MOTORS AMERICA, INC.
