Components and Components Location: Components

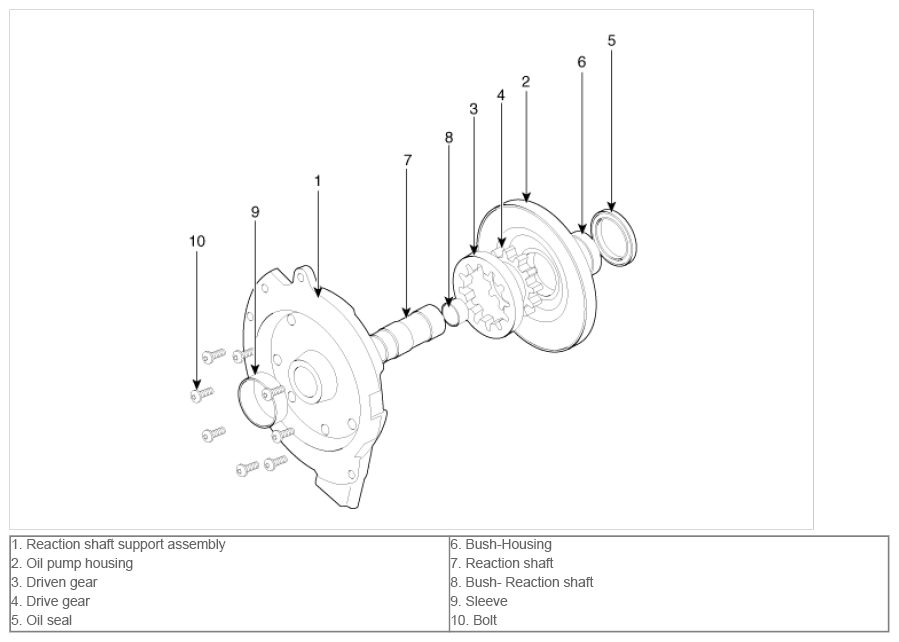

Fig 1: Identifying Oil Pump Related Components
G09751482Courtesy of KIA MOTORS AMERICA, INC.
