Repair Procedures: Installation

Installation is the reverse of removal.
CAUTION: After replacement or reinstallation procedure of the valve body assembly, must perform procedures below.
NOTE:
- Adding Automatic Transaxle Fluid (ATF).
  (Refer to "SERVICE ADJUSTMENT PROCEDURE ")
- Perform Transaxle Control Module (TCM) learning after replacing the valve body to prevent slow transaxle response, jerky acceleration and jerky startup.
  (Refer to "TRANSAXLE CONTROL MODULE (TCM) LEARNING ")
- Use new valve body gasket (A).

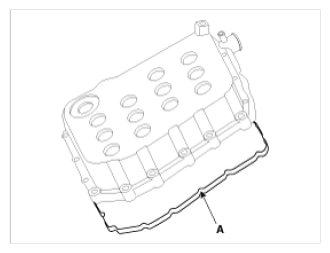

  Fig 1: Identifying Valve Body Gasket
  Courtesy of KIA MOTORS AMERICA, INC.
