Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A).

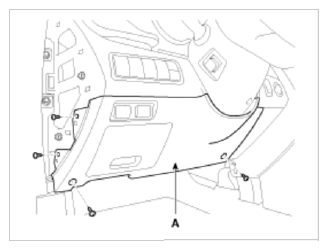

    Fig 1: Identifying Crash Pad Lower Panel
    G09752679Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the Reinforcing panel after loosening the mounting bolt and nut.

    (Refer to "CRASH PAD ")

  4. Disconnect the IPM connectors, loosening the nuts (2EA) and bolt (1EA).

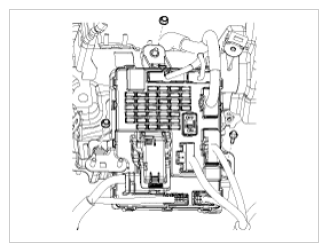

    Fig 2: Identifying IPM Connectors And Bolt
    G09752680Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the rear connector, and then remove the IPM.
