Antenna Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "Antenna Status Check".

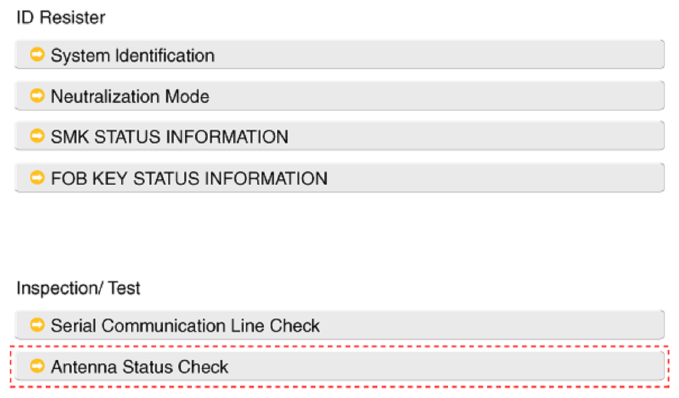

    Fig 1: Display - Antenna Status Check Screen
    G09744843Courtesy of KIA MOTORS AMERICA, INC.
  3. After IG ON, select the "Antenna Status Check".

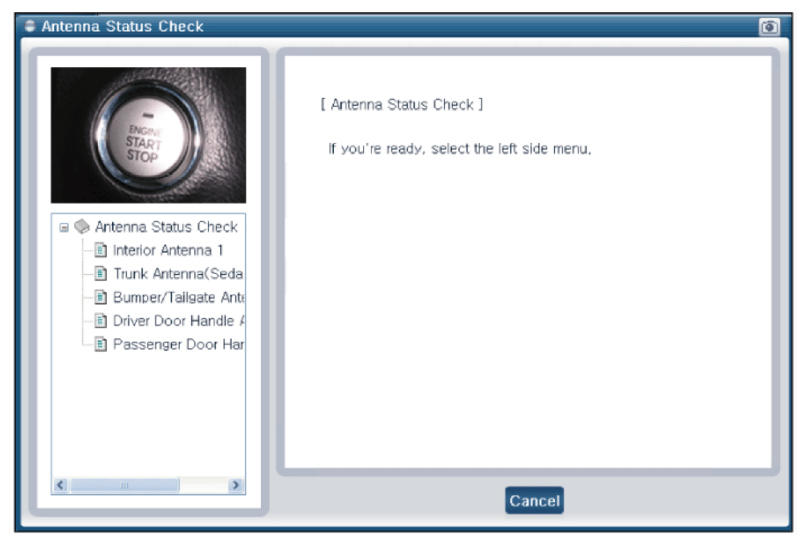

    Fig 2: Display - Antenna Status Check Screen (After IG ON)
    G09744844Courtesy of KIA MOTORS AMERICA, INC.
  4. Set the smart key near the related antenna and operate it with a GDS.

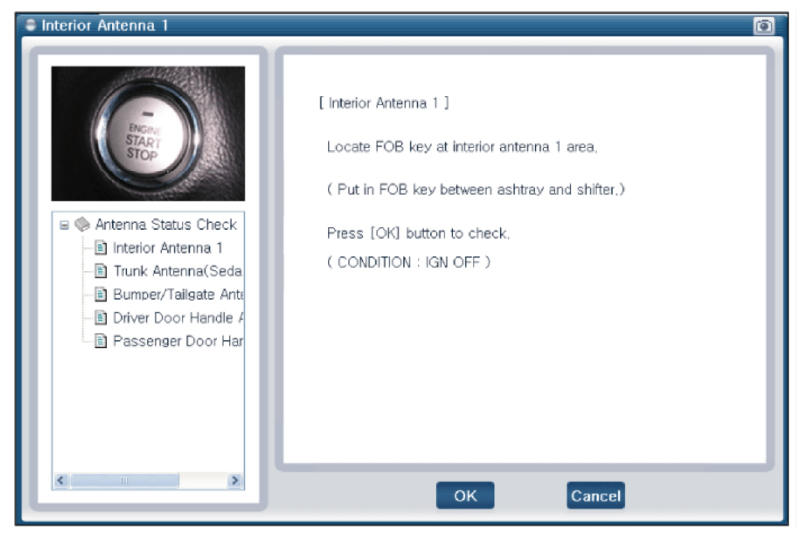

    Fig 3: Display - Interior Antenna 1 Confirmation Message Screen
    G09744845Courtesy of KIA MOTORS AMERICA, INC.

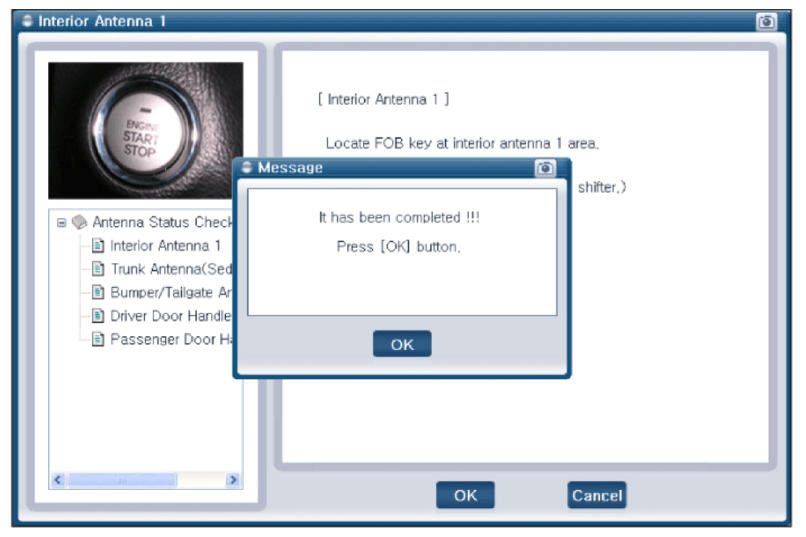

    Fig 4: Display - Interior Antenna 1 Completed Screen
    G09744846Courtesy of KIA MOTORS AMERICA, INC.
  5. If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
  6. Antenna status
    • INTERIOR Antenna
    • Trunk antenna
    • BUMPER/Antenna
    • DRV_DR Antenna
    • AST_DR Antenna
