Repair Procedures: Removal

Open the fuel filler door and unfasten the filler-neck assembly mounting screw (A).

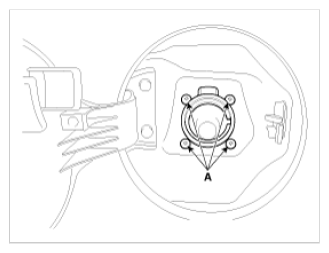

Fig 1: Filler-Neck Assembly Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear-LH wheel, tire, and the inner wheel house.
Disconnect the fuel filter hose (A) and the ventilation hose (B).
Remove the filler-neck assembly from the vehicle after removing the bracket mounting bolts (C).

Fig 2: Fuel Filter, Ventilation Hose And Bracket Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
