Repair Procedures: Removal

Remove the ignition coil.
(Refer to "IGNITION COIL ")
Using a spark plug wrench, remove the spark plug (A).
NOTE:
- Be careful that no contaminates enter into spark plug holes.

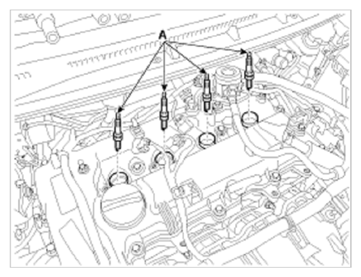

Fig 1: Spark Plugs
Courtesy of KIA MOTORS AMERICA, INC.
