Repair Procedures: Inspection
WARNING: This page is about a different variant/trim than selected.
- Inspect diaphragm spring wear which is in contact with a clutch release bearing.
- Check the clutch cover and disc surface for wear or cracks.
- Check the clutch disc facing for slipping or oil marks.

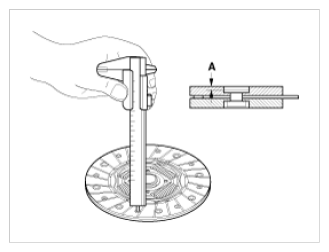

- Measure the depth from a clutch facing surface to a rivet. If the measured value is less than the specification below, replace it.
Clutch Disc Rivet Depth (A):
0.3 mm (0.0118 in.)
