Component Inspection
WARNING: This page is about a different variant/trim than selected.
- Remove the clutch switch.
(Refer to "REMOVAL ")

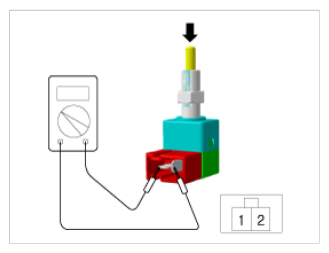

- Push the clutch switch in the direction of the arrow to make sure that continuity is cut off.
Information
Condition Clutch Pedal pressed Clutch Pedal Released Switch Operation ON (below 1.0Ω) OFF (Infinite Ω)
