Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box housing.

    (Refer to "GLOVE BOX HOUSING ")

  3. Remove the passenger's side shower duct by loosening the screw.
  4. Disconnect the connector (A) and then remove the auto defogging actuator (B) after loosening the mounting screws.

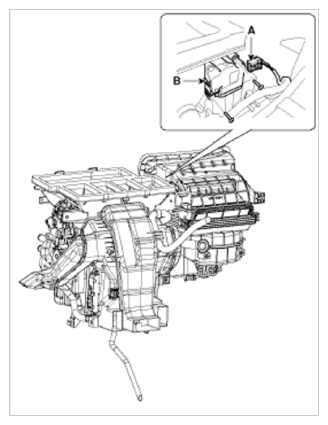

    Fig 1: Auto Defogging Actuator And Connector
    G09745173Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
