Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

  3. Remove the driver's side shower duct by loosening the screw.
  4. Disconnect the connector (A) and then remove the mode control actuator (B) after loosening the mounting screws.

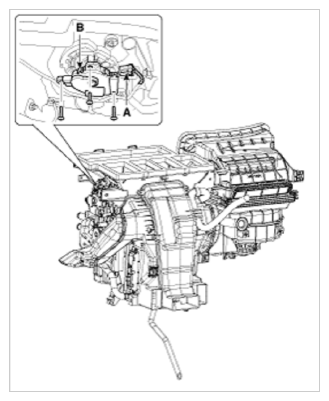

    Fig 1: Mode Control Actuator And Connector
    G09745171Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
