Description And Operation: Description

Heated pads to grip the steering grip makes the fever.

1. Heated control unit

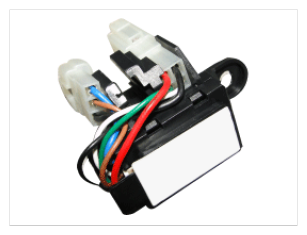

   Fig 1: Heated Control Unit

   Courtesy of KIA MOTORS AMERICA, INC.
2. Heated pad

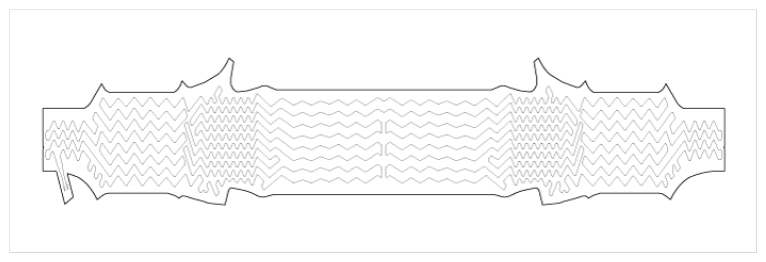

   Fig 2: Heated Pad

   Courtesy of KIA MOTORS AMERICA, INC.

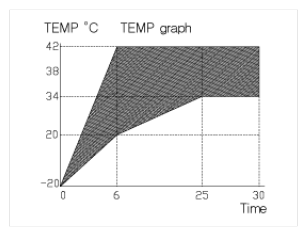

   Fig 3: Temperature Graph

   Courtesy of KIA MOTORS AMERICA, INC.
   VOLTAGE SPECIFICATIONS



   Item	Specification
   Voltage	13.5 V
   Heated pad resistance	1.88 Ω ± 10%
   NTC resistance	10.0 kΩ ± 10% (25°C)
