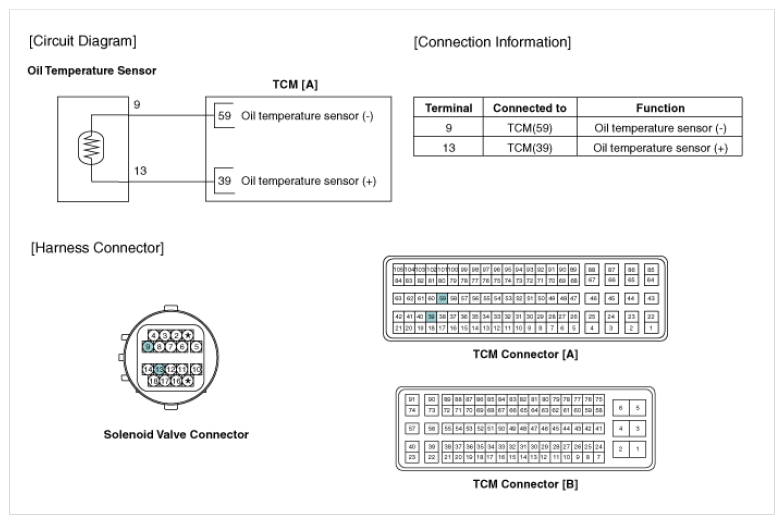

Home › Kia › 2015 › Forte EX › Repair and Diagnosis › Transmission › Transmission Control Systems › Automatic Transaxle Control System - 2.0L › Transaxle Oil Temperature Sensor › Schematic Diagrams › Circuit Diagram
