Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the accelerator position sensor connector (A).

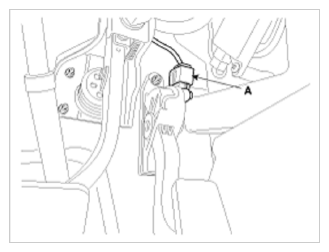

Fig 1: Accelerator Position Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the installation bolt (B), the nuts (C) and then remove the accelerator pedal module.

Fig 2: Accelerator Pedal Module Bolt & Nuts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Accelerator Pedal Module Bolt & Nuts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
