Repair Procedures: Removal

  1. Remove the fuel pump. (Refer to "FUEL PUMP ")
  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).

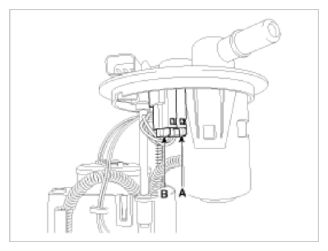

    Fig 1: Electric Pump Wiring Connector And Fuel Sender Connector
    G09745716Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the fuel sender (A) in the direction of an arrow.

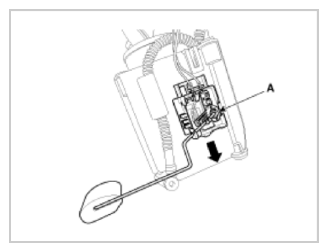

    Fig 2: Removing Fuel Sender
    G09745717Courtesy of KIA MOTORS AMERICA, INC.
